Cabling Guide 17A
S00-1238

Used to guide standard cabling ropes and steel wire in or out of duct mouths. Also known as a cable roller

Mobirise

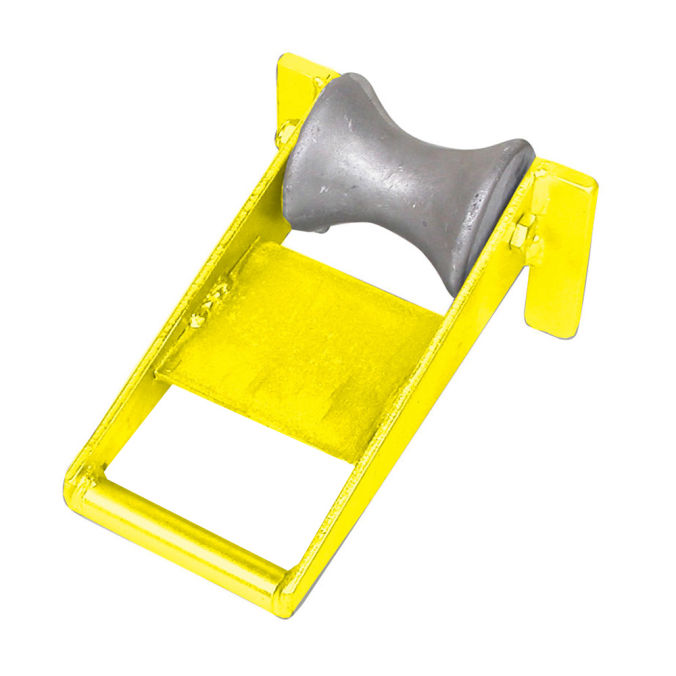

Roller Rope Guiding Surface
S00-1237

Used to avoid damage to drawropes and cabling ropes when drawing out of joint boxes.

Mobirise

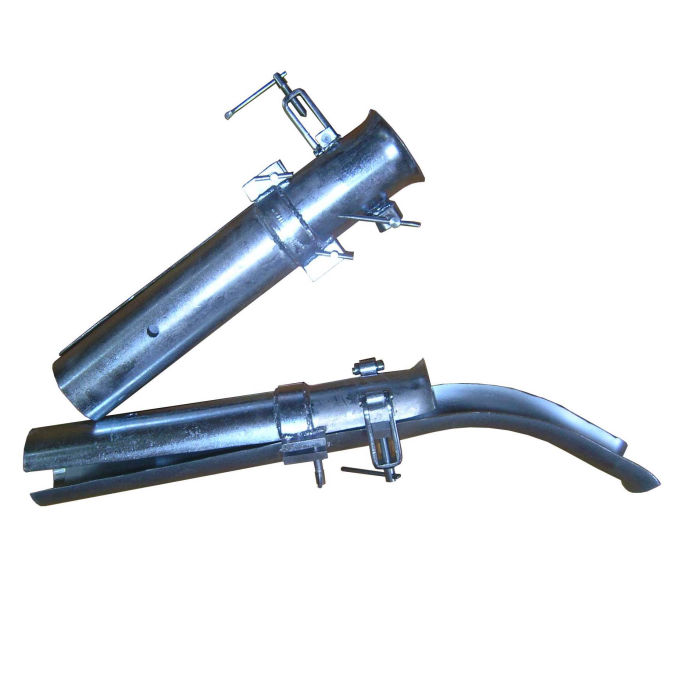

Cabling Guide 1
S82-0770 (Straight)

Used on 89mm & 92mm bore ducts to draw the cable straight into the duct and for cabling through jointing chambers with duct tracks in line

Mobirise

Cabling Guide 2
S82-0771 (Curved)

Split cabling guide for angled ducts with internal diameters of 89mm-92mm (96.5mm Duct). Used to draw the cable into the duct at an angle, the angular deviation to be no more than 30 degrees

Mobirise

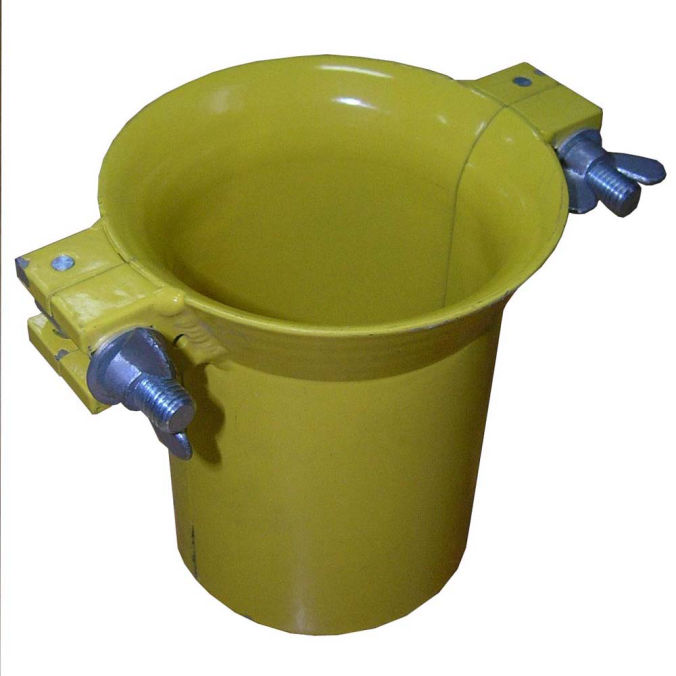

Split Bellmouth No 1
S00-1240

Used to prevent damage when drawing cable into 83mm ducts. Consists of a two part tubular sleeve which is assembled around the cable whilst in situ. Made of Aluminium to reduce sparking risk

Mobirise

Split Bellmouth No 2
S001241

Used to prevent damage when drawing cable into 90-92mm ducts. Consists of a two part tubular sleeve which is assembled around the cable whilst in situ. Made of Aluminium to reduce sparking risk

Mobirise

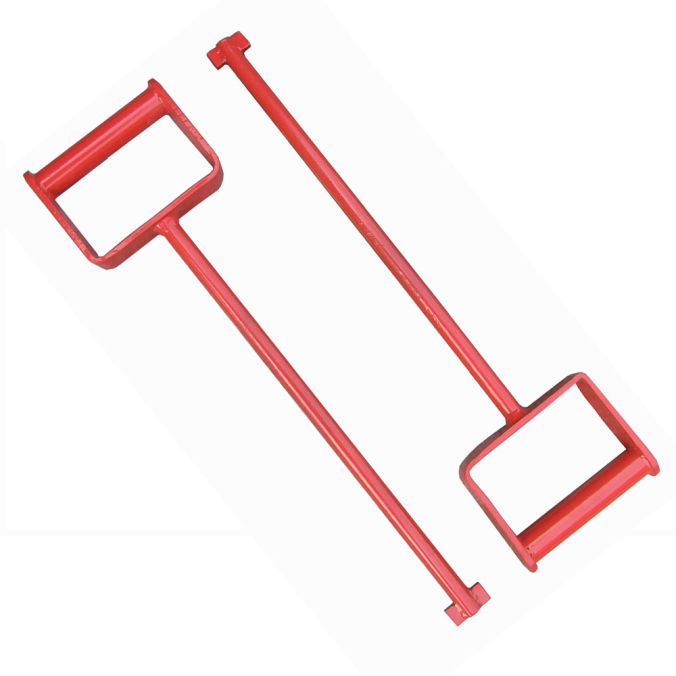

20" Cover Lifter
S00-3000

Pair of 20” (500mm) long pit lifting keys featuring 36mm blades. suitable for small pit covers.

Mobirise

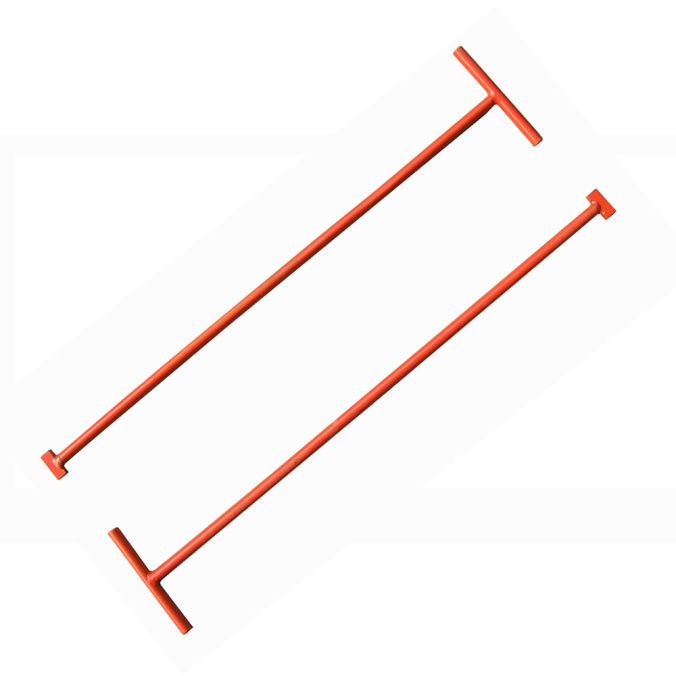

T Cover Lifter
S00-0005

Pair of 20” (500mm) long pit lifting keys with 25.4mm blades. suitable for small pit covers.

Mobirise

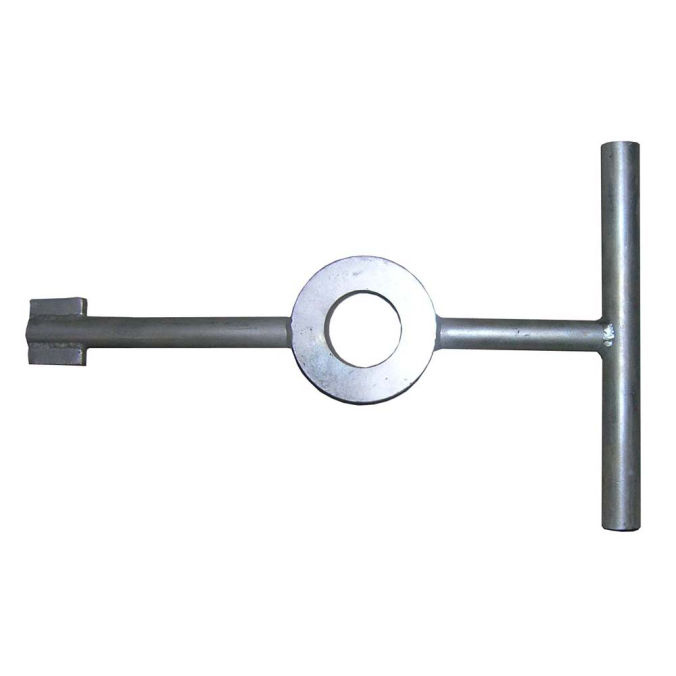

Carriageway Key
S003575

“T” shape lifting key for use on circular, oval “woods” type and triangular carriageway manhole covers. Features an eye enabling the use of a crowbar to assist lifting. Supplied individually but used in pairs

Mobirise

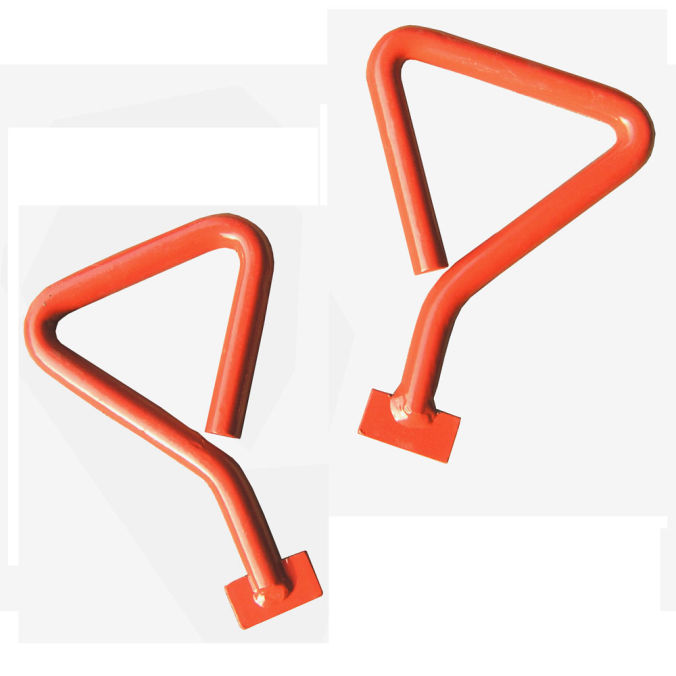

Heavy Duty Manhole Key
S00-1072

Key 9752 (Pair) For medium to heavy non-locking covers, for lifting locking heavy duty covers.

Mobirise

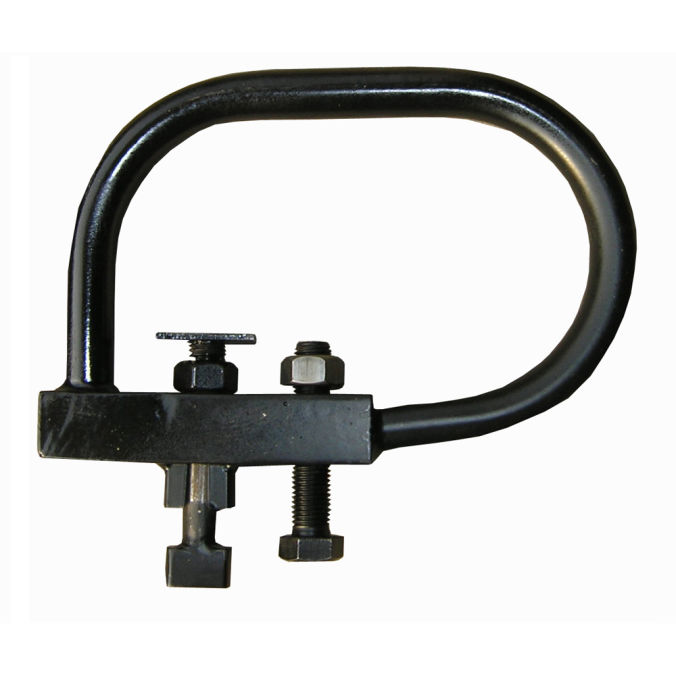

"D" Cover Lifter
S00-3001

This D type pit lifter is for use on E type and square or rectangle covers. Features an adjustable locking nut which bears against the frame to lift the cover.

Mobirise

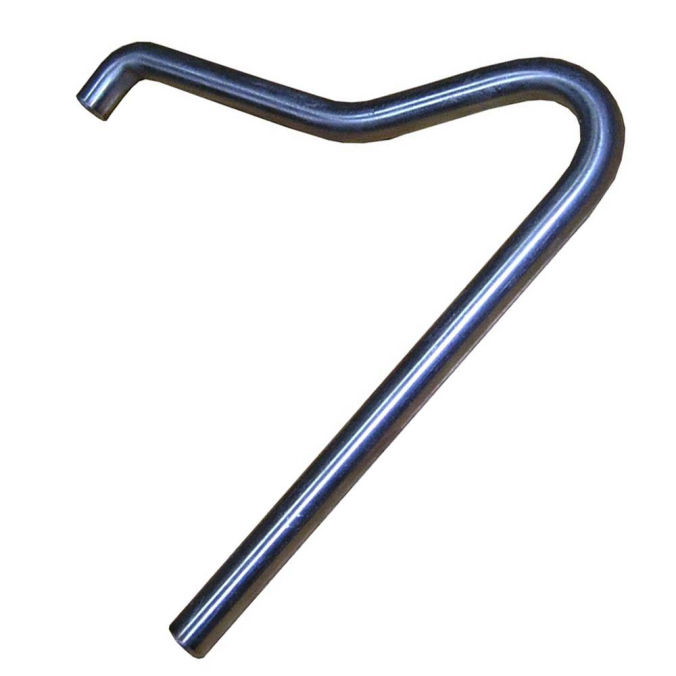

Mini Cover Lifter
S00-3031

Lightweight lifter in 9mm diameter stainless steel.

Mobirise

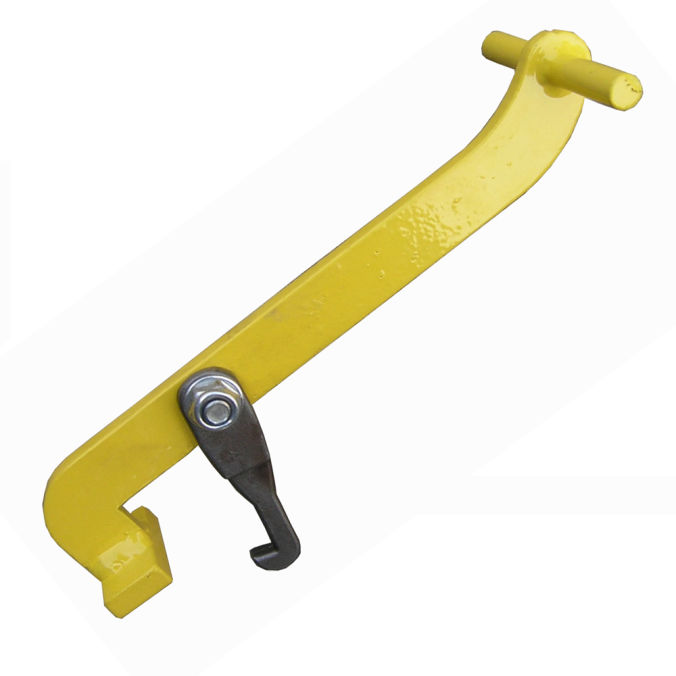

No 2 Cover Lifter
S00-3002

Used to remove the covers of joint boxes with the exception of types 21 and 22. Is also suitable for use on Frame & Cover Unit Type Light and Frames & Cover Carriageway 4. It is a lever action key

Mobirise

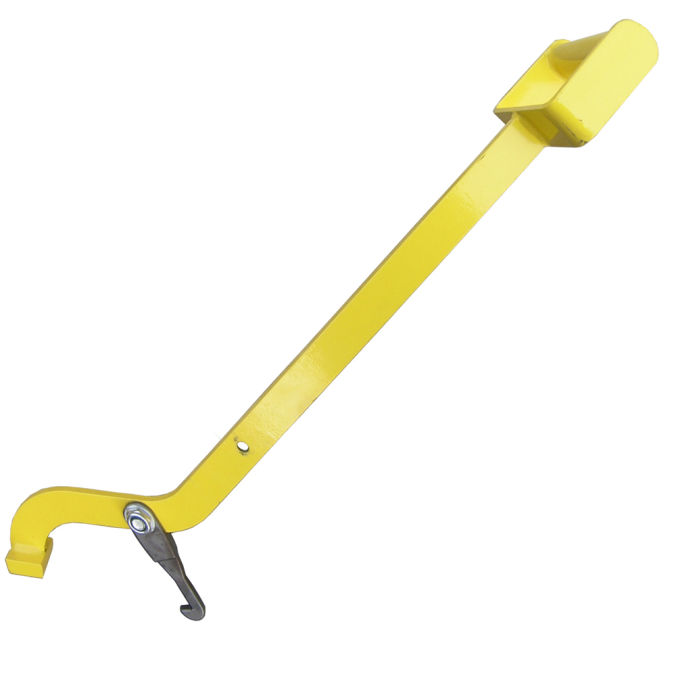

Pit Cover Lifter No 4
S00-1071

Long handled version of the Key Joint Box 2, enabling the user to lift the cover whilst standing up.

Mobirise

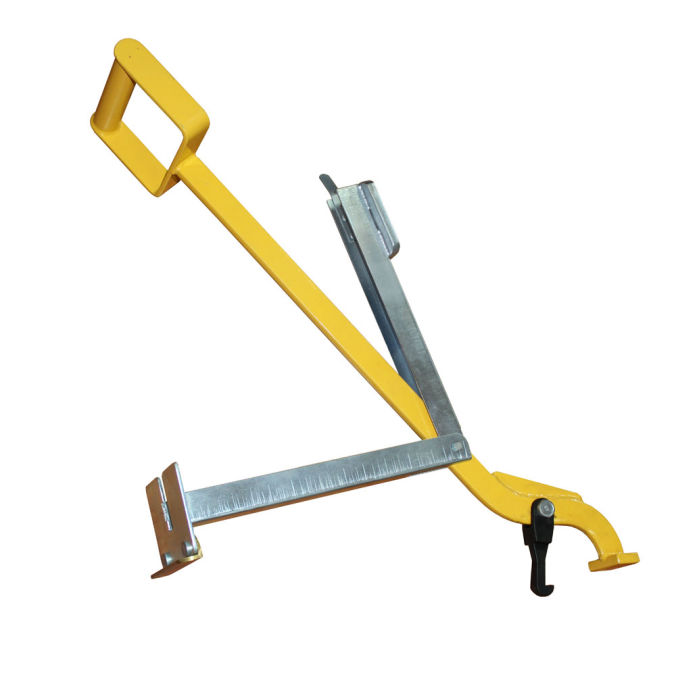

Pit Cover Lifter No 5

An adaptation of the popular No.4 Lifter to now include an additional hinged arm which positions under the opened pit lid offering added security and safety.

Mobirise

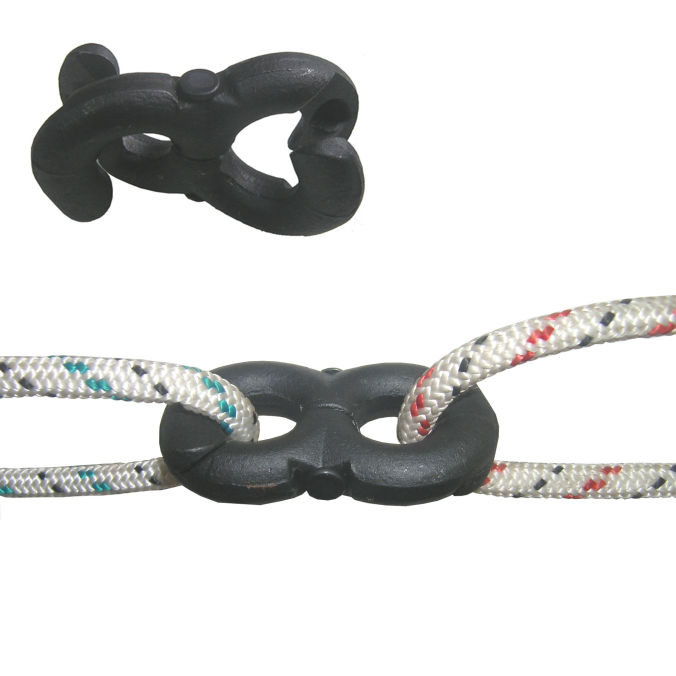

Link Keystone
S82-0957

A figure of 8 high tensile steel link with a quick release facility. Dimensions: 44 x 81mm Eye: 19mm

Mobirise

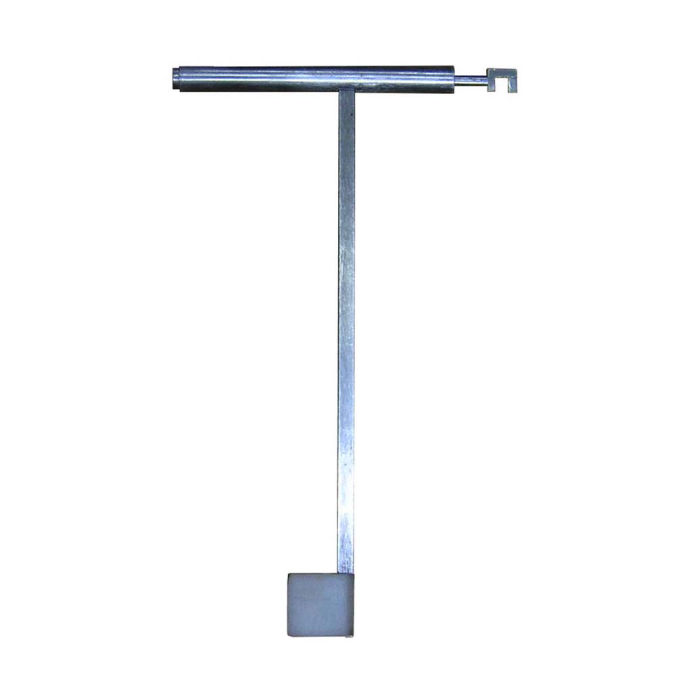

HDC Tool
C00-5022

A T bar tool providing easy removal of U links, insertion of GTIS into a populated DDF and releasing frame mounted plugs

Mobirise

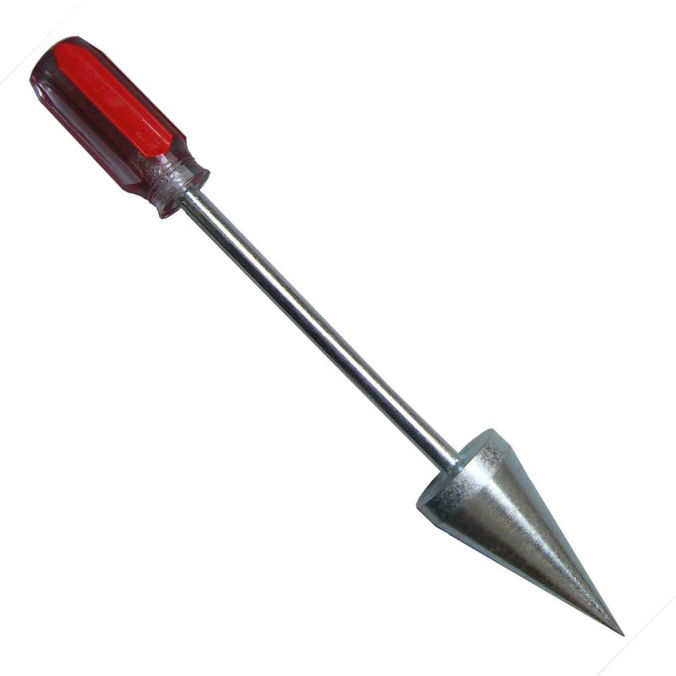

Hole Melter
S83-2873

Used to make holes into plastic ducting.

Mobirise

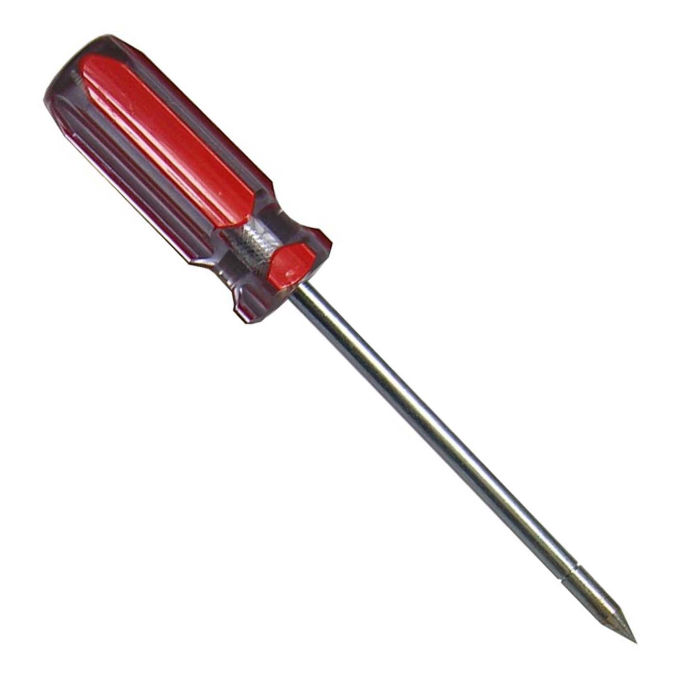

Pole Probe Test
S83-0806

Hardened steel 10 inch tool used to detect external decay on wooden poles. Includes protective sheath.

Mobirise

Soldering Iron Holder 1
S83-3248

Spring Loaded Contractors soldering iron holder for all sizes of soldering irons. No asbestos used.

Mobirise

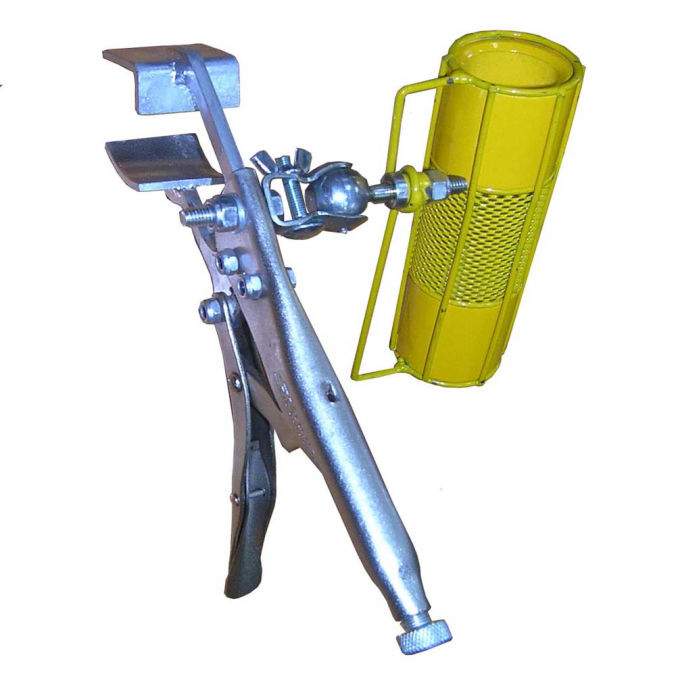

Soldering Iron Holder 2
S83-3247

Vice Grip Contractors soldering iron holder for all sizes of soldering irons. No asbestos used.

Mobirise

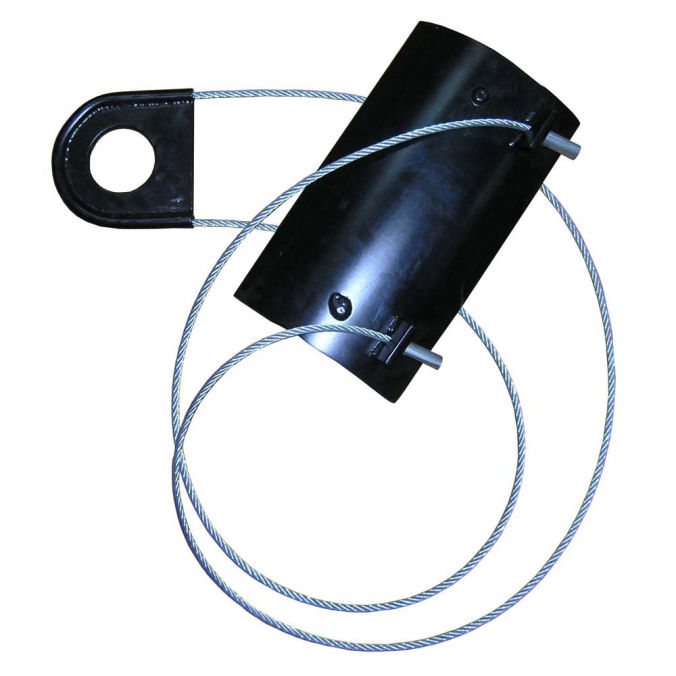

Pole Twister
S83 0768

Plate type pole twister, used to align poles after installation

Mobirise

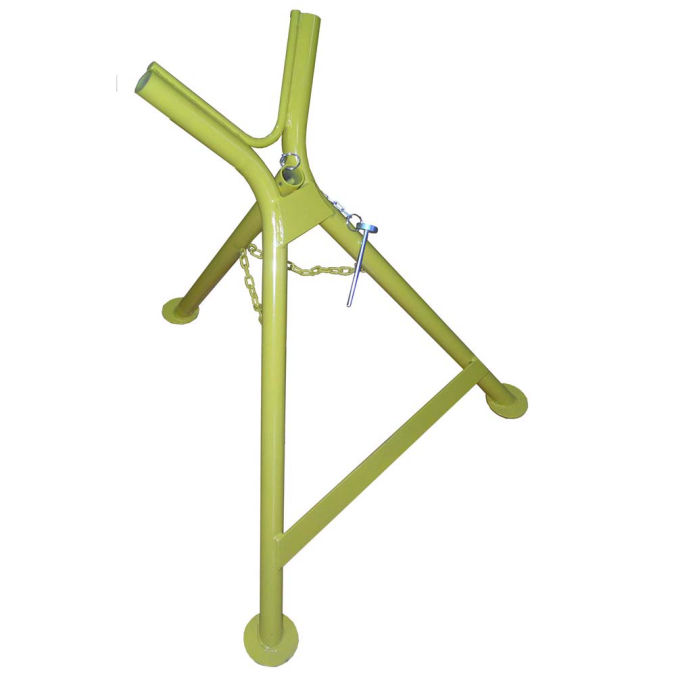

Horse Pole
S00-3642

Trestle to support poles whilst dressing. Includes flat feet and can be folded flat.

Mobirise

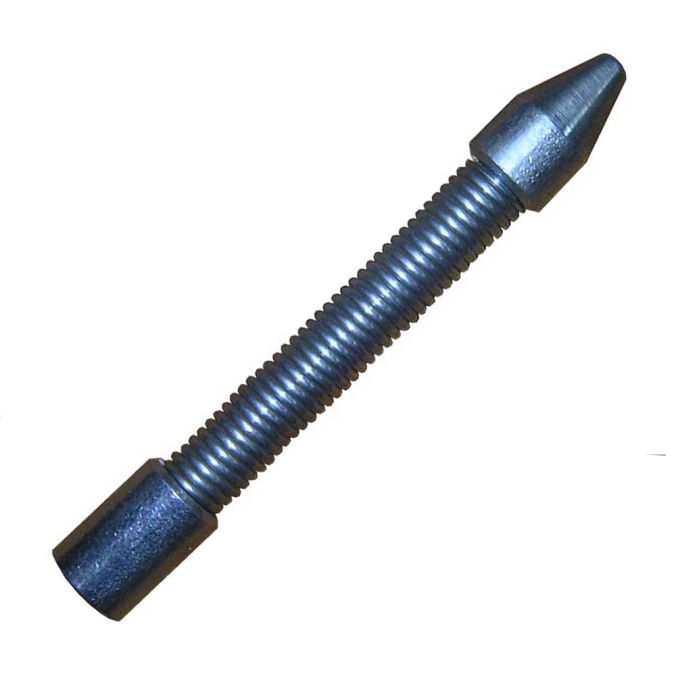

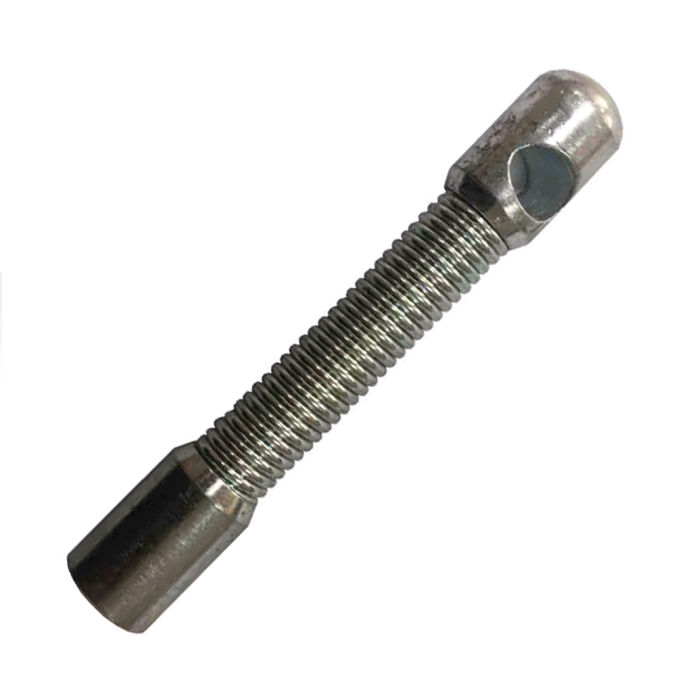

Spring End Attachmen

Spring End attachment for 9, 11 & 14mm rodders

Mobirise

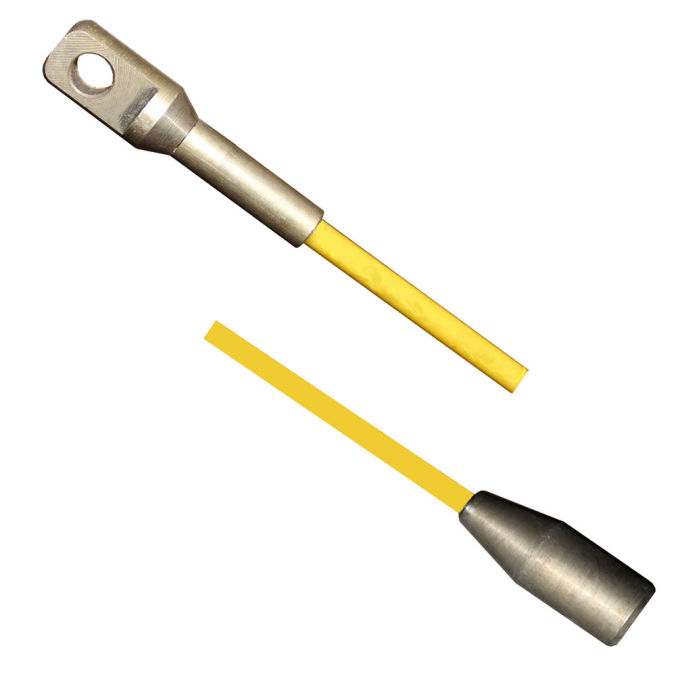

FLexi End
S00-1382

A 60cm length of 6mm rod with pulling eye, use to assist conduit rods around bends, suitable for 9mm, 11 and 14mm cobras.

Mobirise

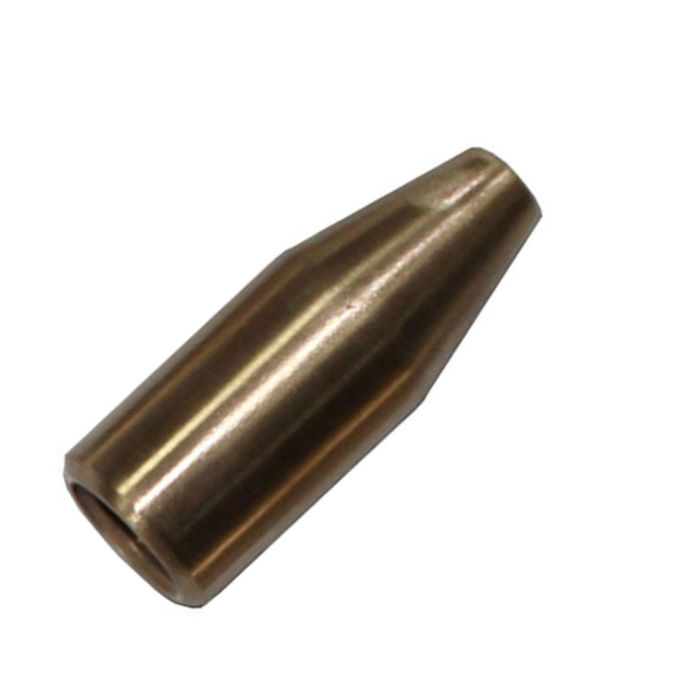

Lead and Follower
C00-3501

End fitting for #5 Duct Rod

Mobirise

Spring End, Shackle Pull

Spring End attachment for 9, 11 & 14mm rodders

Mobirise

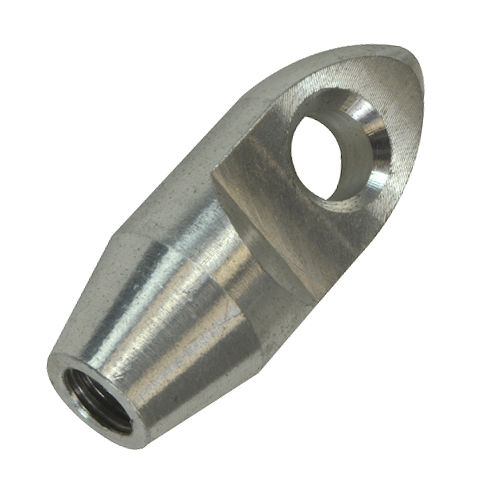

Bullet End
S00-1381

Threaded tip which guides the rod through the duct, the eye allows a pulling rope to be attached to the rod – Suitable for 9, 11 and 14mm rods

Mobirise

Attachment Rod 4A
S83-0720

Used with Rod Duct 3 as a Leader or when used with Adaptor Rod 2A or 3A as a Leader or follower with Rod Duct 1 or 2. Bullet End

Mobirise

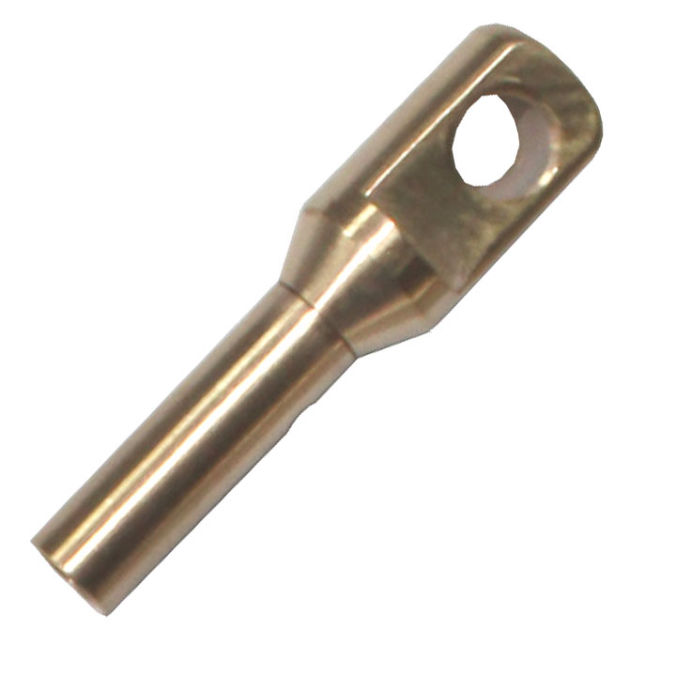

Cobra Bullet End
S00-1380

Threaded tip which guides the rod through the duct, the eye allows a pulling rope to be attached to the rod – Suitable for 4.5 and 6mm rods

Mobirise

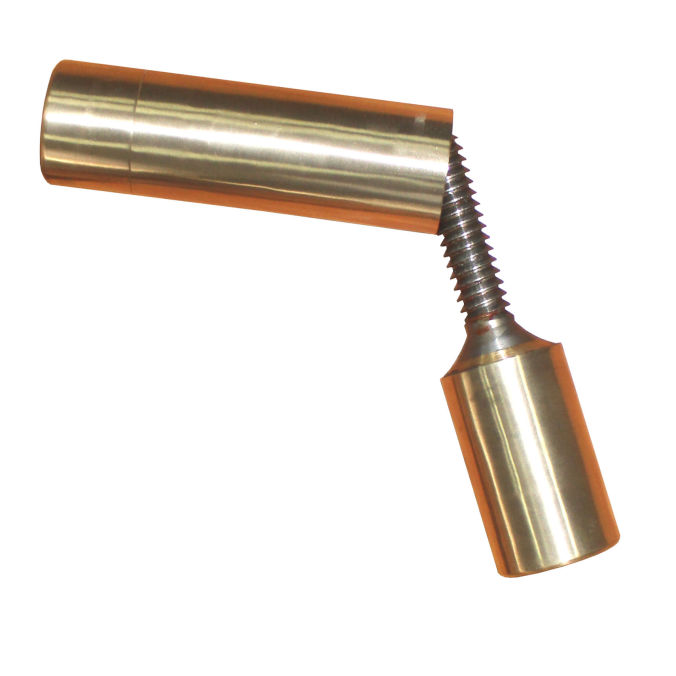

Coupling up Set #1
C003541

Small lockfast coupling up piece used for marrying Rods within a Duct

Mobirise

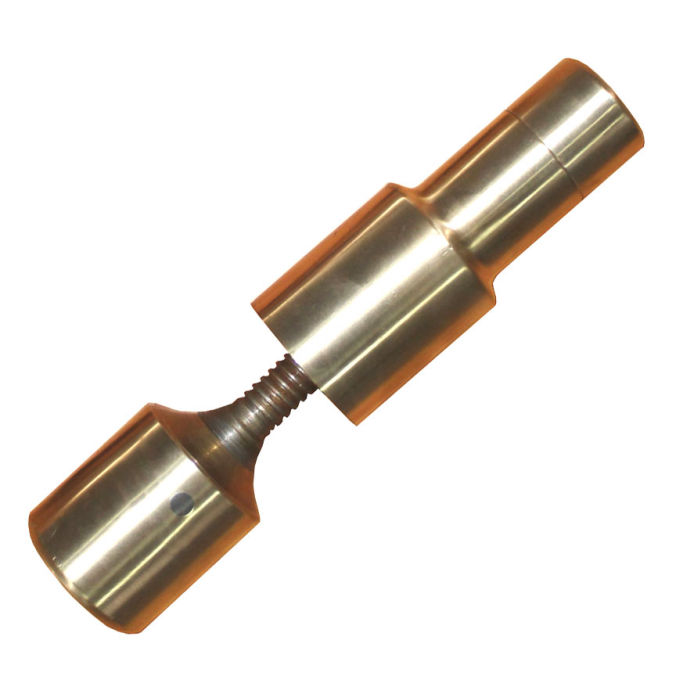

Coupling up Set #2
C003542

Large lockfast coupling up piece used for marrying Rods within a Duct

Mobirise

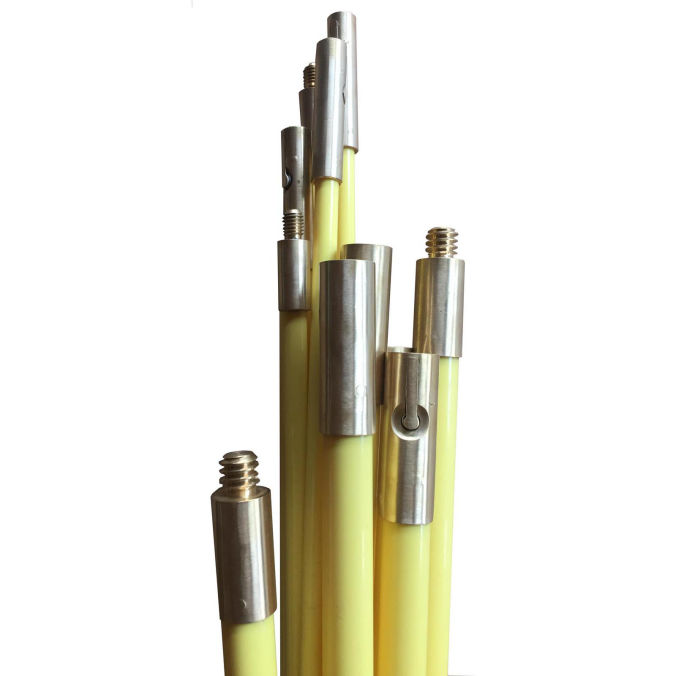

No 5 Duct Rod Lockfast
Ferret Type 2m x13mm
C00-5213

Lockfast duct rods To BT spec TL347C, 2M overall length

Mobirise

Duct rod No 1 Lockfast
Ferret Type

Lockfast duct rods To BT spec TG216G, 3M overall length

Mobirise

Duct rod No 2 Lockfast
Ferret Type

Lockfast duct rods To BT spec TG216G, 2M overall length

Mobirise

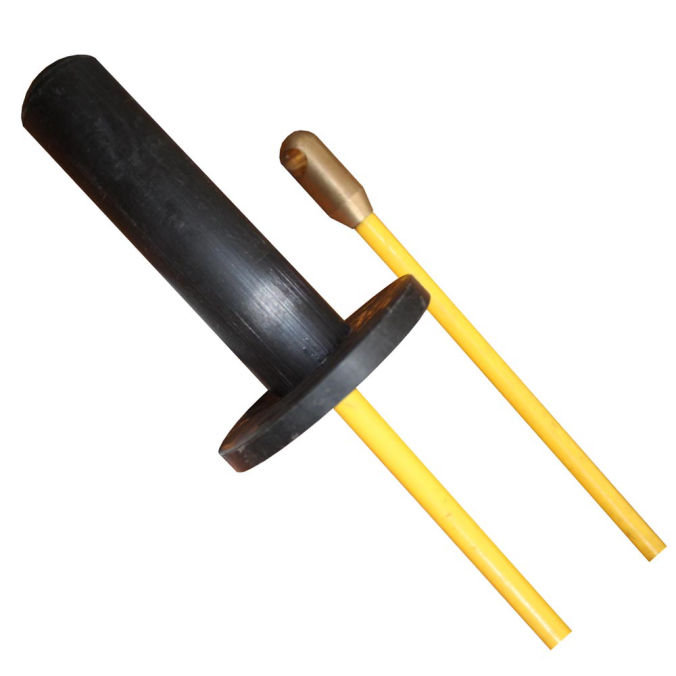

Tee Proving Rod
S00-9090

Tee Proving Rod made from glass fibre with a polyethene coating. 1750mm overall length

Mobirise

Coach Brace
E2017

Hand held brace, used to attach and remove Steps Pole from poles.

Mobirise

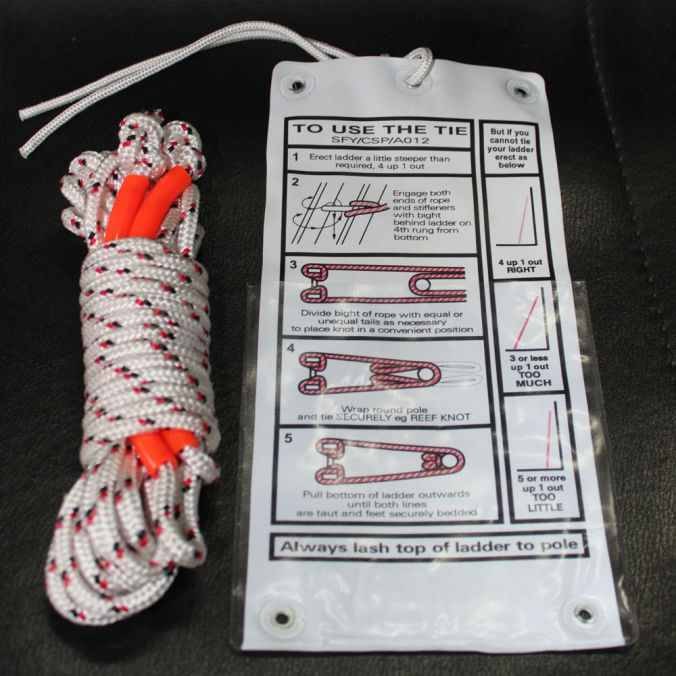

Ladder Tie
S83-0789

Used to leash Ladders Extension 5B and 7A when working on poles. Full instruction on back of pvc case.

Mobirise

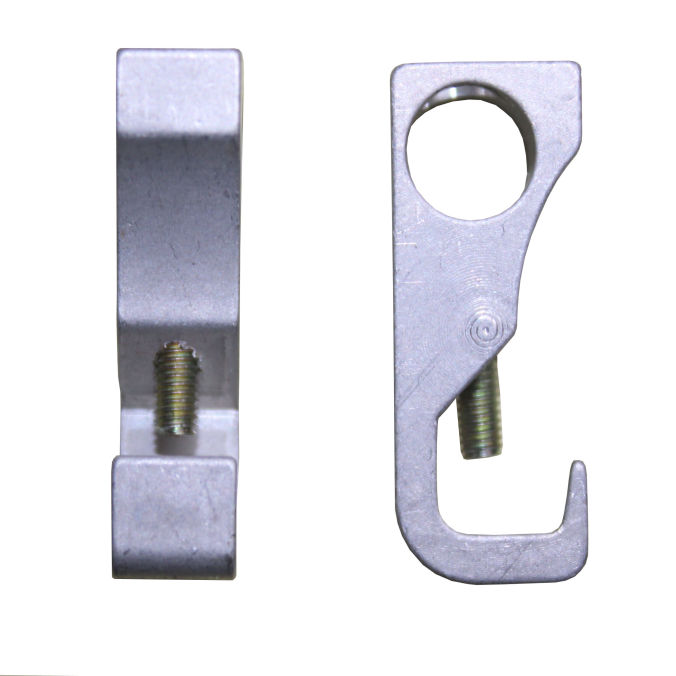

Dolly Locking Device
C00026

Specially designed locking fixture to secure device in either the ON or OFF position
Not supplied with Pad Lock

Mobirise

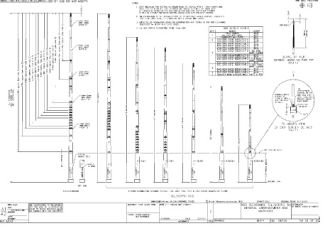

7m Telescopic Rod

S83-0723

7m length non conductive GRP rod to  gauge the clearance height of dropwire at road crossings.

Mobirise

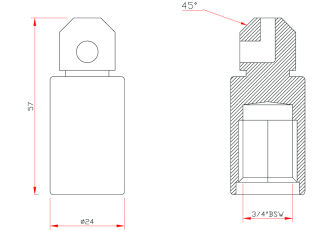

Adapter Rod 1A.

CN11128


Brass ¾” BSW fitting for use with Duct rods 1&2 and associated fittings.

Mobirise

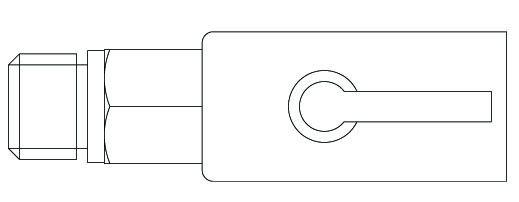

Adapter Rod 2A

CN11126

Brass Lockfast ¾” BSW F For use with duct rods 1&2 and associated fittings.

Mobirise

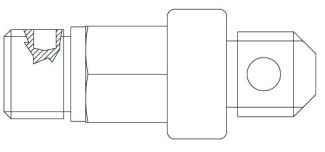

Adapter Rod 3A

CN11127

Brass ¾” BSW fitting for use with Duct rods 1&2 and associated fittings.

Mobirise

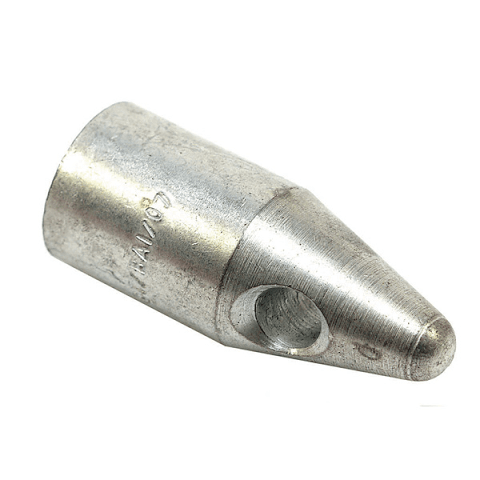

Attachment Rod 4A

S83 0720A


Aluminium Pulling end for use with #5 Duct rod.

Mobirise

Attachment Rod 5A

S83-0720B

Brass Pulling end for use with #5 Duct rod and associated fittings.

Mobirise

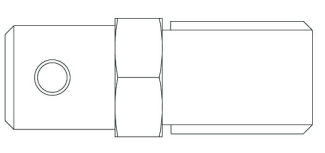

Coupling Duct rod 3 Reel

CN10810

This adaptor has type D male thread and attaches the storage reel to the female end of duct rod 3. ¾” UNF

Mobirise

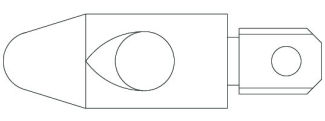

Attachment Rod 1A

CN11124

Brass Bullet End for attachment to Duct rod #5

Mobirise

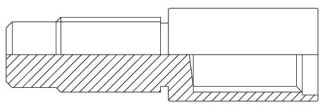

Coupling Duct rod 3 Female

CN10236

Brass ¾” BSW F For use with duct rods 1&2 and associated fittings.

Mobirise

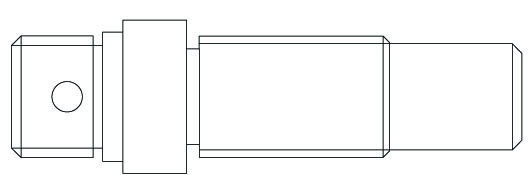

Coupling Duct rod 3 Male Swivel.

CN10237

Brass ¾” BSW F For use with duct rods 1&2 and associated fittings.

Mobirise

Attachment Rod 3A

CN11925

Brass and sprung steel for use with duct rod #5 and associated fittings.

Mobirise

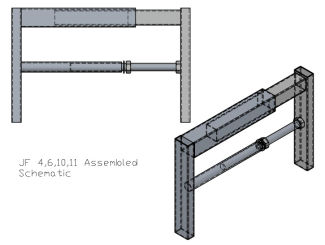

Mobra Bracket Frame

JF2; JF 4,6, JF 10,11

For use with joints and termination boxes within cable chambers
• No-Drill MOBRAs in three sizes.

Mobirise

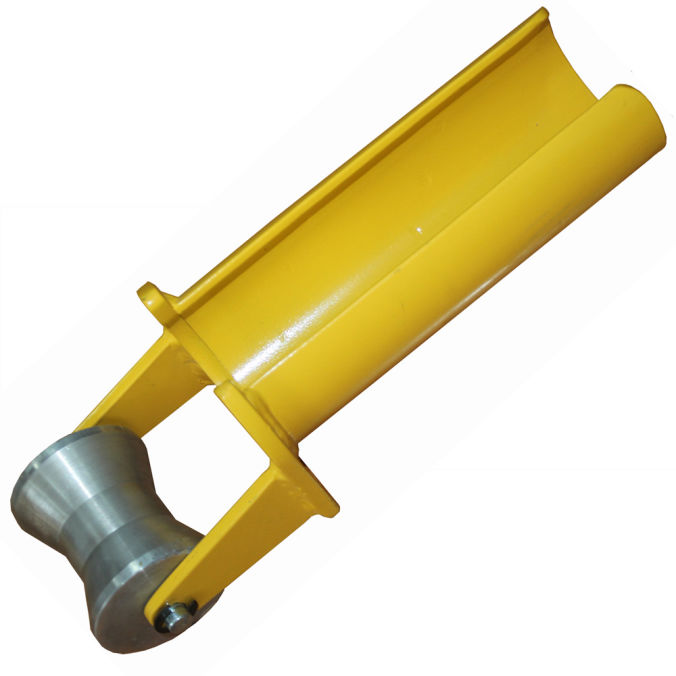

Cabling Guide 6A & 6B

Cabling Guide 6A 1.5 M Long
Cabling Guide 6B 3.0 M Long
Cable guide for heavy cabling work can be connected together to extend the duct entry to the cable drum trailer.

Mobirise

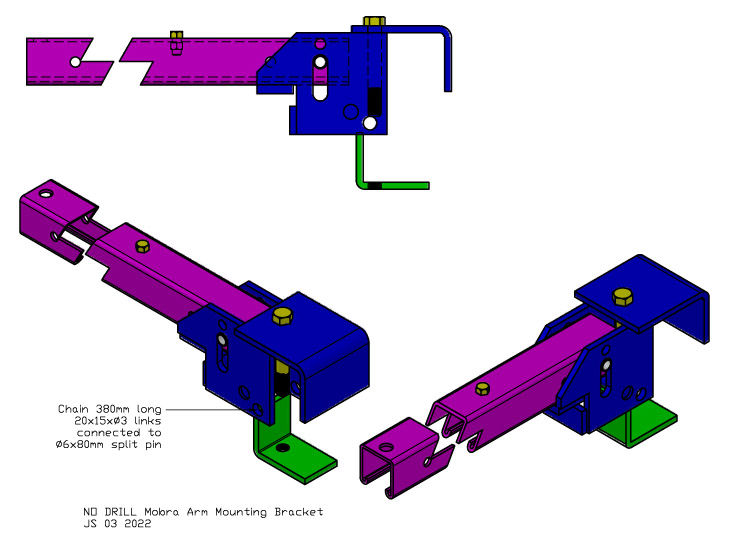

MOBRA Chamber Bracket Pivot Arm


822384

MOBRA chamber mounting brackets and accessories for use with joints and termination boxes within cable chambers
• No-Drill MOBRAs in three sizes to suit standard jointbox and cable chamber types
• Pivot arms available in two sizes

Mobirise

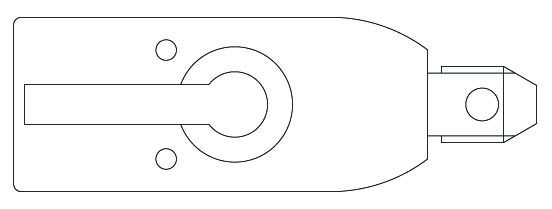

Adapter Rod 7


CN5027


This adaptor has aType B male thread and a Type A female thread and allows the male end of Duct Rod No.1 or Duct Rod No.2 to join to the female end of Duct Rod No 5.


Mobirise

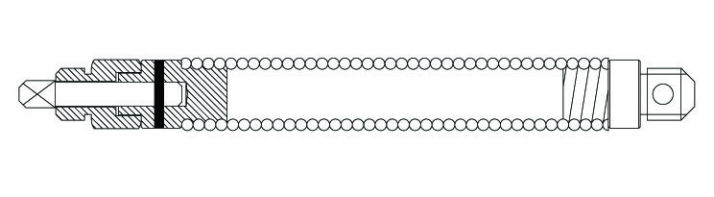

Adaptor Rod 5

CN1949

This adaptor has a Type A male thread and a Type C male thread.
It can be used as a flexi-end when fixed into the female end of a Duct Rod No1 or Duct Rod No 2 and combined with Attachment Rod 4A.
It can also be used to connect Duct Rod No1 or Duct Rod No 2, Coupling Up Pieces.

Mobirise

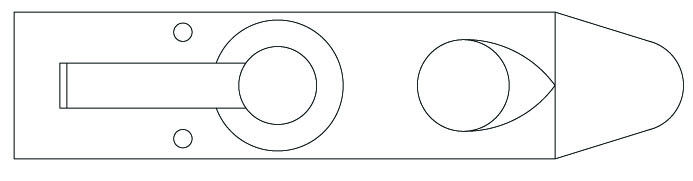

Attachment Rod 2 A


CN11311

Brass lockfast bullet end for attachment to duct rod #5

Mobirise

Unique Styles

Brass ¾” BSW F For use with duct rods 1&2 and associated fittings.

Mobirise

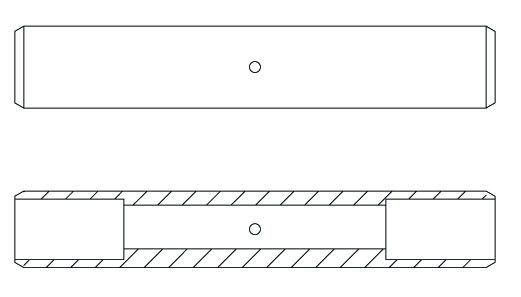

Rod To Rod Repair Kit
Including tube jointing glue.

EE-4.5-6.0
4.5mm & 6mm Cobra Rods
EE-9.0
9mm Cobra Rod
EE-11
11mm Cobra Rod
EE-14
14mm Cobra Rod


Mobirise

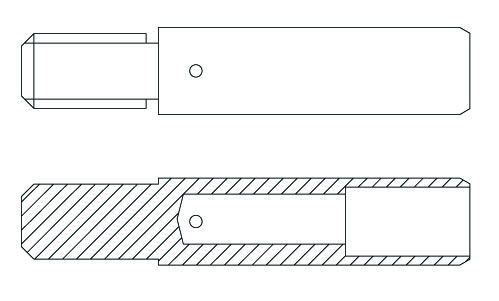

Cobra Rod End Male Thread Replacement
Including Jointing Glue.

S00-1374M
For 4.5 & 6.0 mm Cobra Rods
SOO-1375M
For 9mm Cobra Rods
S00-1367M
For 11mm Cobra Rods
S00-1380M
For 14mm Cobra Rods

Mobirise

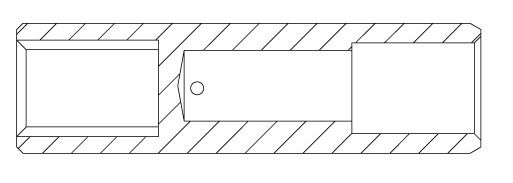

Cobra Rod End, Female Thread Replacement
Including Jointing Glue.

S00-1374F
For 4.5 & 6 mm Cobra Rod
S00-1375F
for 9mm Cobra Rod
S00-1376F
For 11mm Cobra Rod
S00-1380F
For 14mm Cobra Rod
